GPS ANTENNAS - MOBILE (1)
SYGA SERIES

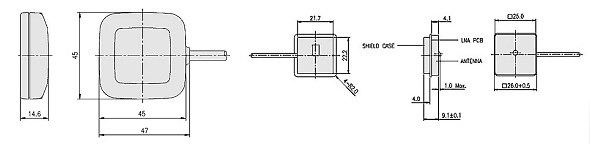

		Electrical Specifications Frequency 1575.42MHz±1.023MHz VSWR Less than 2.0 Nominal 50 Ohms Nominal 50 Ohms Polarization R.H.C.P. Impedance 50 Ohms Polarization Vertical Gain 25dB ±2dB Noise Figure 2.0dB (max) Band Attenuation 20dB min @Fo±50MHz Axial Ratio 3dB max Voltage DC+3V~DC+5V(±10%) Current 5mA (max) Mechanical Specifications Item SYGA CN3M SYGA CN3 Weight 110g 90g Height 14.6mm 8.6mm Width 45x45mm 26x26mm Cable RG-174 5m, 1.5D2v 5m Other Types optional Connector SMA (Other Types optional) Mounting Magnetic Base None Case Enviromental Operating Temp. -30°C ~ +80°C Storage Temp. -40°C ~ +90°C
