DIRECTIONAL PANEL ANTENNA
SYDPA 900

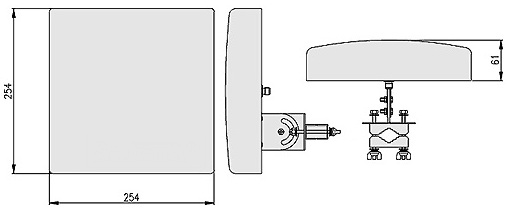

		Electrical Specifications Frequency Range 902 - 928 MHz VSWR <1.5 : 1 Nominal 50 Ohms Nominal 50 Ohms Gain 8 ±1dBi Radiation Pattern directional 3dB Beam Width (degrees) vertical      65 ±5 horizontal  70 ±5 Polarization vertical F/B ratio 20 min. Power Input 50 Watts max. Impedance 50 Ohms Downtilt (degrees) 0 Mechanical Specifications Dimensions 220 W x 220 H x 45 D (mm) Connector Type TNC - female Mount Pole or Wall Weight 0.85 ±5% kg Radome Material ASA Element Material BS Plate Mechanical Downtilt 0 - 20 degrees Cover Color Ivory Temperature Range -20°C ~ +70°C
SYSTRON INC. 1274 3rd Avenue South Lethbridge, Alberta T1J 0J9		Phone: (403) 327-1444 Fax:     (403) 327-1480 e-mail: sales@systroninc.com
