GPS BASE ANTENNA  GPS MARINE ANTENNA
SYGA-BN / SYGA-BT

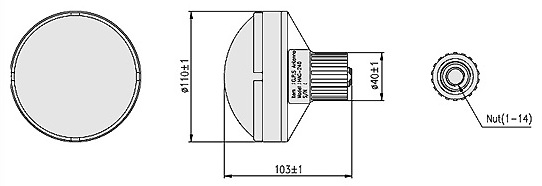

		Electrical Specifications Frequency 1575.42MHz±1.023MHz VSWR Less than 2.0 Polarization R.H.C.P. Impedance 50 Ohms LNA Gain 26dB ±3dB/37dB±2dB Noise Figure 2.0dB (max) Band Attenuation 10dB min @Fo±50MHz Voltage DC+4.5V~12V Current 30mA (max) Mechanical Specifications Weight 450g Height 103mm Width ø110mm Cable RG-174 5m, 1.5D2v 5m Other Types optional Connector N-Type (Female), TNC (Female) Mounting Bracket Enviromental Operating Temp. -30°C ~ +80°C Storage Temp. -40°C ~ +90°C
