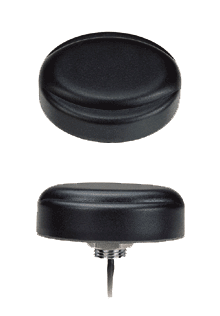

GPS ANTENNA PANEL MOUNT
SYGA-CNP
		Electrical Specifications Frequency 1575.42MHz±1.023MHz Polarization R.H.C.P. Gain @Zenith        +5dBi typical           @10° Elevation -1dBi typical Axial Ratio 3dB max Impedance 50 Ohms Electrical Specifications Frequency 1575.42MHz±1.023MHz VSWR Less than 2.0 Polarization R.H.C.P. Impedance 50 Ohms LNA Gain 26dB ±2dB Noise Figure 2.0dB (max) Band Attenuation 20dB min @Fo±50MHz Axial Ratio 3dB max Voltage DC+3V(±10%)/DC+5V(±10%) Current 20mA (max) Mechanical Specifications Weight 150g Height 18.5mm Width 60x50mm (Elliptical Cable RG-174 5m, 1.5D2v 5m Other Types optional Connector SAM, or Other Types (Optinal) Mounting Panel Mount Enviromental Operating Temp. -30°C ~ +80°C Storage Temp. -40°C ~ +90°C APPLICATION Car Navigation
