2400 / 5000 MHz
  DIRECTIONAL ANTENNA		 systlog2.gif (3643 Byte)

  SYLP2400/5000-HY


Waterproof Feed System
Pipe Mount Type
Log Periodic Antenna
Dual Band (2400~2500MHz, 5150~5850MHz)

Electrical Specifications
Item Specifications
Frequency Range 2400~2500 MHz
5150~5850 MHz
Gain 11dBi: 2400~2500 MHz
12dBi: 5150~5850 MHz
Front to Back Ratio 12dB

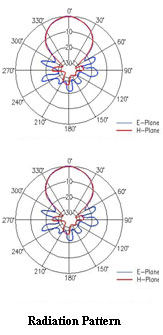

3dB Beam Width 40°±20° (Horizontal, H-Plane)
35°±20° (Vertical, E-Plane)
V.S.W.R. (Max.) Less than 2.0
Impedance 50 Ω (Nominal)
Polarization Vertical
Power Input (Max.) 10 W

Mechanical Specifications
Item Specifications

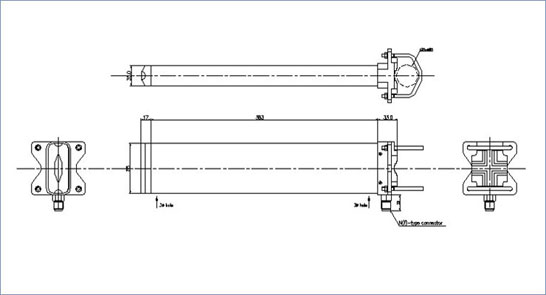

Dimensions W: 100mm L: 423mm D: 116mm
Weight 550g Antenna Only
Connector Type N-type Female
Mount Type Mast Mount (Dia. 30~60mm)
Operating Temperature -30° ~ +60° C
