SLEEVE DIPOLE ANTENNAS
 FOR WLL		 systlog2.gif (3643 Byte)

  SYSDA SERIES

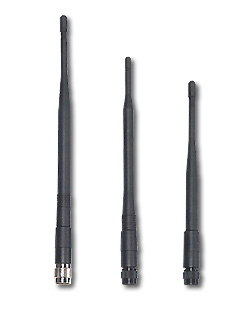

    Sleeve dipole antennas for Wireless Local Loop (WLL) systems applications.

These antennas feature a half wavelength design with a 0-90° ajustable swivel connector.

Various connectors in standard or reverse polarisation are available including TNC, BNC and SMA





Electrical Specifications
Item Specifications
Frequency Range 900 MHz Band
1900 MHz Band
2400 MHz Band
Impedance Nominal 50 Ohms
V.S.W.R Less than 1,9
Polarization Vertical
Gain 1,5 dBi min.

Mechanical Specifications
Item Specifications
Radiator Copper wire
Sleeve Polyurethane
Connector TNC/BNC/SMA
Operating temperature -30°C~+60°C

Model Length max.
SYSDA 900 233 mm
SYSDA 1900 197 mm
SYSDA 2400 178 mm
