BNC CONNECTORS systlog2.gif (3643 Byte)
Description

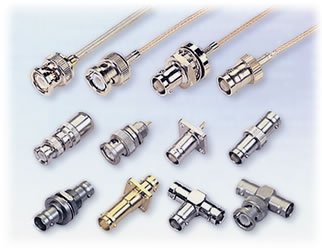

BNC connectors are a lightweight connector widely used in computer networks, test and instrumentation, telecommunications and broadcast industries. The quick disconnect bayonet coupling, small size, and low cost are key features. Cable termination styles available include crimp/crimp, one-piece sure twist, traditional solder/clamp styles as well as field service terminations requiring no special tools. BNC connectors are available with both 50ohm and 75ohm impedance for applications where impendence matching is important. Typically, the 75ohm BNC is used in video and telecommunication applications.

BNC Connectors
Specifications
ELECTRICAL
Electrical Data General Specifications Note
Impedance 50 Ω
Frequency range DC - 4 GHz
V.S.W.R
  • Straight semi-rigid
  • Straight flexible
  • Right angle flexible
1 GHz 2.5 GHz
1.04 1.06 RG-405/0.085"
1.15 1.25 RG-316/u
1.08 1.10 RG-316/u
Dielectric withstanding
  • Voltage (at sea level)
  • Working voltage (at sea level)

1500 V rms. 50Hz
< 500 V rms. 50Hz
Insulation resistance > 5.104 M Ω
Contact resistance
  • Center contact
  • Out contact

< 1.5 m Ω
> 1 M Ω

ENVIRONMENTAL
Environmental Data General Specifications Note
Temperature range -65 °C ~ +165 °C
Temperature shock MIL- STD 202, Method 107, Condition B
Moisture resistance MIL- STD 202, Method 106
Corrosion Saltspray Test acc. to MIL-STD 202,
Method 101, Condition B
Vibration MIL-STD 202, Method 204, Condition B
Shock MIL-STD 202, Method 213, Condition G

MECHANICAL
Mechanical Data General Specifications Note
Coupling nut torque
  • Recommended torque

7 Ncm ~ 28 Ncm / 0.6in. lbs. ~ 2. 5in. -Ibs
Coupling nut retention force >450 N / 101.2 Ibs
Contact captivation > 27 N / 6.1 lbs
Durability (Matings) > 500

MATERIAL
Connector Part Material Plating
Bodies. Pin contact Brass Gold. Nickel
Spring and washer Beryllium-copper Gold
Socket contacts Silicone rubber Gold
Insulators PTFE
Crimp ferrules Brass Nickel
