MCX SERIES SUBMINIATURE
 RF CONNECTORS		 systlog2.gif (3643 Byte)
Description

MCX miniature snap-on connectors offer an excellent combination of small size, lightweight, durability and performance for applications such as GPS, wireless communication and Test & Measurement. MCX connectors offer space reductions of 30% when compared with the SMB series. These can be used in applications up to 3 GHz and fit most applications where space is limited and weight, size, performance and ease of assembly are required.

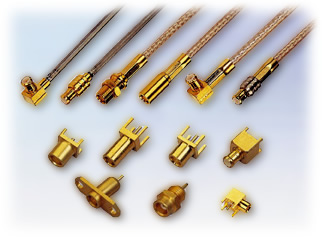

MCX Series Subminiature RF Connectors
Specifications
ELECTRICAL
Electrical Data General Specifications Note
Impedance 50 Ω
Frequency range DC - 6 GHz
V.S.W.R
  • Straight semi-rigid
  • Straight flexible
  • Right angle semi-rigid
  • Right angle flexible
 1 GHz 2.5 GHz
1.07 1.18 RG-405/0.085"
1.09 1.16 RG-316/u
1.04 1.05 RG-405/0.085"
1.09 1.06 RG-316/u
Dielectric withstanding
  • Voltage (at sea level)
  • Working voltage (at sea level)

750V rms. 50Hz
< 250V rms. 50Hz
Insulation resistance > 104 M Ω
Contact resistance
  • Center contact
  • Out contact

< 5 m Ω
> 1 M Ω

ENVIRONMENTAL
Environmental Data General Specifications Note
Temperature range -65 °C ~ +165 °C
Temperature shock MIL- STD 202, Method 107, Condition C
Moisture resistance MIL- STD 202, Method 106
Corrosion Saltspray Test acc. to MIL-STD 202,
Method 101, Condition B
Vibration MIL-STD 202, Method 204, Condition D

MECHANICAL
Mechanical Data General Specifications Note
Engagement force < 25 N / 5.6 lbs
Disengagement force 8 N - 10 N / 1.8 Ibs - 4.5 lbs
Contact captivation > 10 N / 2.3 lbs
Durability (Matings) > 500

MATERIAL
Connector Part Material Plating
Bodies Brass Gold. Nickel
Socket contacts Beryllium-copper Gold
Outer contact Beryllium-copper Gold
Insulators PTFE
Crimp ferrules Brass Gold. Nickel
