SMA SERIES SUBMINIATURE
 RF CONNECTORS		 systlog2.gif (3643 Byte)
Description

SMA connectors are precision subminiature connectors primarily used for higher frequencies with excellent electrical performance from DC through 18 GHz. The SMA connectors are built in accordance with MIL-C-39012 and are available for a variety of flexible and semi-rigid cable assemblies. Brass SMA connectors are available and provide a cost effective solution for applications where stainless steel construction is not required.

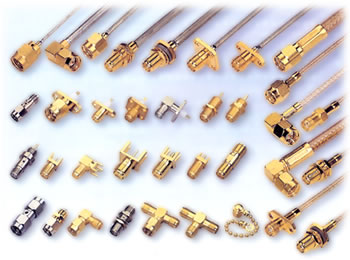

SMA Series Subminiature RF Connectors
Specifications
ELECTRICAL
Electrical Data General Specifications Note
Impedance 50 Ω
Frequency range DC - 18 GHz
V.S.W.R
  • Straight semi-rigid
  • Straight flexible
  • Right angle semi-rigid
  • Right angle flexible
 1 GHz 2.5 GHz
1.03 1.03 RG-405/0.085"
1.05 1.07 RG-316/u
1.03 1.05 RG-405/0.085"
1.05 1.07 RG-316/u
Dielectric withstanding
  • Voltage (at sea level)
  • Working voltage (at sea level)

1000V rms. 50Hz
< 325V rms. 50Hz
Insulation resistance > 53 M Ω
Contact resistance
  • Center contact
  • Out contact

< 3 m Ω
> 2 M Ω

ENVIRONMENTAL
Environmental Data General Specifications Note
Temperature range
  • Recommended torque
  • Coupling proof torque

-65 °C ~ +165 °C
-65 °C ~ +80°C
Temperature shock MIL- STD 202, Method 107, Condition B
Moisture resistance MIL- STD 202, Method 106
Corrosion Saltspray Test acc. to MIL-STD 202,
Method 101, Condition B
Vibration MIL-STD 202, Method 204, Condition D
Shock MIL-STD 202, Method 203, Condition I

MECHANICAL
Mechanical Data General Specifications Note
Couling nut torque
  • Semi-rigid cables
  • Flexible cables

1.0 Nm / 8.9 in.-lbs
1.7 Nm / 15.0 in.-lbs
Coupling retention force > 270 N / 60.7 lbs
Contact captivation > 27 N / 6.1 lbs
Durability (Matings) > 500

MATERIAL
Connector Part Material Plating
Bodies. Pin contact Stainless Gold. Passivated
Brass Gold. SUCO
Center contacts Beryllium-copper Gold
Insulators PTFE
Gaskets Silicone rubber
Crimp ferrules Brass Gold. Nickel
