SMC SERIES SUBMINIATURE
 RF CONNECTORS		 systlog2.gif (3643 Byte)
Description

The SMC Subminiature coaxial connector series is based on the same design as the SMB series. With its screw-on coupling mechanism, the SMC Subminiature connectors are suitable for applications up to 10GHz.

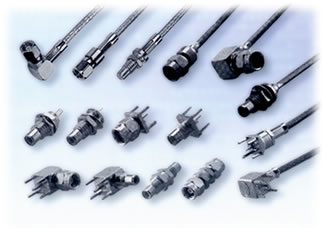

SMC Series Subminiature RF Connectors
Specifications
ELECTRICAL
Electrical Data General Specifications Note
Impedance 50 Ω
Frequency range DC - 10 GHz
V.S.W.R
  • Straight semi-rigid
  • Straight flexible
  • Right angle semi-rigid
  • Right angle flexible
 1 GHz 2.5 GHz
1.07 1.15 RG-405/0.085"
1.08 1.10 RG-316/u
1.07 1.10 RG-405/0.085"
1.09 1.12 RG-316/u
Dielectric withstanding
  • Voltage (at sea level)
  • Working voltage (at sea level)

750V rms. 50Hz
< 250V rms. 50Hz
Insulation resistance > 104 M Ω
Contact resistance
  • Center contact
  • Out contact

< 6 m Ω
> 1 M Ω

ENVIRONMENTAL
Environmental Data General Specifications Note
Temperature range -65 °C ~ +165°C
Temperature shock MIL- STD 202, Method 107, Condition C
Moisture resistance MIL- STD 202, Method 106
Corrosion Saltspray Test acc. to MIL-STD 202,
Method 101, Condition B
Vibration MIL-STD 202, Method 204, Condition D

MECHANICAL
Mechanical Data General Specifications Note
Couling nut torque
  • Semi-rigid cables
  • Flexible cables

25 Ncm ~ 35 Ncm/2.2in. -Ibs ~ 3.1 in. -Ibs
71 Ncm / 36.0 in.-Ibs
Coupling retention force > 160 N / 36.0 lbs
Contact captivation > 18 N / 4.0 lbs
Durability (Matings) > 500

MATERIAL
Connector Part Material Plating
Bodies. Pin contact Brass Gold
Socket contacts Beryllium-copper Gold
Insulators PTFE
Crimp ferrules Brass Gold
